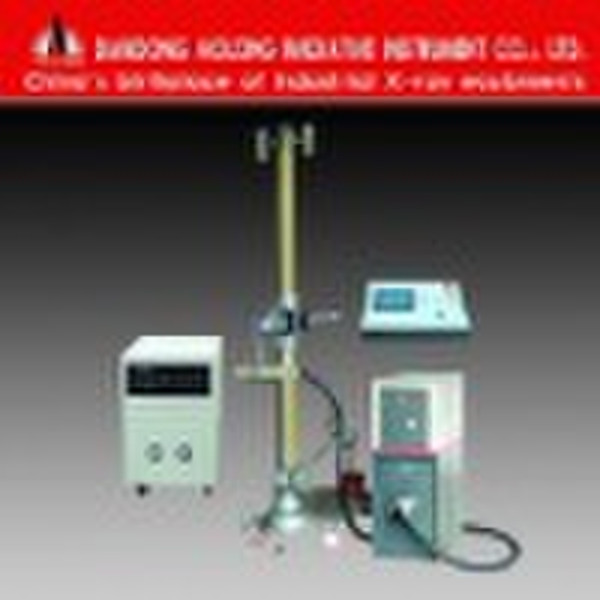

Mobile X-ray flaw Detectors Technological Scheme(Stationary x-ray equipment XYD-4510/2 model as reference)1.The Summarize Mobile industrial X-ray flaw detectors is main NDT equipment,Its main function is happen constant potential x-ray, control and adjust and it,may detect the inside defection of workpiece via radiography . 2.Composing 1) Metal ceramic X-ray tube MXR-451/26 1Pcs made by COMET 2) High Voltage cable 225KV 5m 2Pcs made by COMET. 3) High frequency and Voltage generator H225 2Pcs made by ALRC 4) Controller T7000 1Pcs made by ALRC 5) Oil cooling system YLB-2 1Pcs made by ALRC 6) device for the x-ray tube moving and fixing 1Pcs made by ALRC 7) Low Voltage cable and the water pipe 1Set made by ALRC 8) Spare parts 1Set made by ALRC 3.The Main Technical Parameter 3.1 Industrial Unipolar metal Ceramic X-ray tube, made in Switzerland Comet 3.2 Tube voltage:50 450KV, adjust constantly and the step is 0.1Kv 3.3 Tube current:0.1 10mA(big focus) 0.1 2mA(small focus) Adjust constantly and the step is 0.1 mA 3.4 The focus size:d=5.5mm(big focus) d=2.5mm(small focus) (EN12543) 3.5 Cooling mode: Oil cooling minimum oil flow >22L/min 3.6 Radiation coverage:40° 3.7 Exposure condition: Tube voltage: 450KV Tube current: 10mA Double foil lead intensifying screen Focus distance: 600mm Exposure time:10min Industrial X-ray film 3.8 Maximal penetration (Fe):100mm 3.9 Sensitivity: ≤ 1.5% 3.10 Film density: >1.5 3.11 225KV H.V cable:2Pcs,5m/Pcs,adopt flange to connect
